Actions with elements

When the user taps the card, action calls the event specified in url.

{
  "actions": [{
    "log_id": "<unique_id>",
    "url": "div-action://<action_description>?other/parameters"
  }]
}

Parameter	Description
`url`	An event that is triggered by tapping the card.
`log_id`	Logging ID. It must be unique within a single card.

You can open the menu by tapping using the special menu_items parameter. If at least one action in the array has a menu_items field, tapping the element will show a menu, and all other fields will be ignored.

A separate type of action are actions that are triggered only by a long tap (longtap-actions).

Typed actions

Typed actions differ from standard actions in format. They can be specified in a JSON object. In standard actions, all parameters must be specified in the url field.

Action example

Typed action example

"actions": [
  {
    "log_id": "set_2",
    "url": "div-action://set_variable?name=variable&value=123"
  }
]

"actions": [
  {
    "log_id": "set_2",
    "typed": {
      "type": "set_variable",
      "variable_name": "variable",
      "value": {
        "type": "integer",
        "value": 123
      }
    }
  }
]

Tip

We recommend using typed actions. They allow you to avoid encoding parameters and simplify visual perception and layout validation.

Name	Description
div-action-animation-start	Starts the specified animator.
div-action-animation-stop	Stops the specified animator.
div-action-array-insert-value	Adds a value to an array.
div-action-array-remove-value	Removes a value from an array.
div-action-array-set-value	Sets a value in an array by index.
div-action-focus-element	Requests focus for an element.
div-action-clear-focus	Removes focus from an element.
div-action-copy-to-clipboard	Copies data to the clipboard.
div-action-dict-set-value	Sets a value in a dictionary by key.
div-action-download	Downloads additional data in `div-patch` format and updates the current element.
div-action-show-tooltip	Shows a tooltip.
div-action-hide-tooltip	Hides a tooltip.
div-action-scroll-by	Scrolls a scrollable container from the current position by the specified `item_count` or `offset` value.
div-action-scroll-to	Scrolls to a position or switches an element in a container to the specified `destination` value.
div-action-set-state	Sets a new appearance for content in `div-state`.
div-action-set-stored-value	Temporarily stores a variable in storage.
div-action-set-variable	Assigns a value to a variable.
div-action-submit	Sends variables from a container via a link. Data sending configuration can be determined by the host application. By default, variables are passed in the request body as JSON, request method is POST.
div-action-timer	Controls a timer.
div-action-video	Controls video playback.

Sets of states

The state element switches the appearance of content. You can use it to add:

Buttons that change their state (for example, the like icon when tapped).
Content that can be expanded (for example, a bridge card or a geo block).

One picture changes to another, but the user sees it as an interaction.

To switch to a different state, use url:

div-action://set_state?state_id=<div_data_state_id/div_id/state_id>&temporary=<bool>

The path is formed from the hierarchy root:

Parameter

Description

state_id

The path of the state inside state that needs to be activated. Set in div_data_state_id/div_id/state_id format.

Can be hierarchical: div_data_state_id/div_id_1/state_id_1/../div_id_n/state_id_n
Consists of:

div_data_state_id: state_id numeric value of the state object in data.
div_id: div_id value of the state object.
state_id: state_id value of the state object in state.

temporary

Indicates a state change:

true: The change is temporary and the state will revert to the original one when the element is re-created (default value).
false: The state change is permanent.

View an interactive example

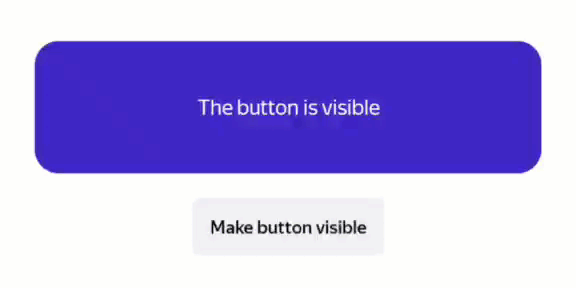

Empty state

If you need to hide a block, don't add a div field, but specify "state_id": "empty".

View an interactive example

Nested states

If multiple states are nested in each other, write the full path from the root in order to switch:

div-action://set_state?state_id=[root state id]/[element's div_id]/[state's state_id]

View an interactive example

Actions when appearing

visibility elements are triggered when an element is shown on the screen.

{
  "visibility_actions": [
    {
      "log_id":"content_01_visibility",
      "visibility_percentage": 100,
      "visibility_duration": 1000,
      "url": "div-action://none"
    }
  ]
}

Parameter	Description
`visibility_percentage`	Percentage of the element's visible area.
`visibility_duration`	The minimum time of its visibility.

Loading more data

To load more data in the form of a patch and update the current element, specify the download action:

div-action://download?url=<patch_url>

Parameter	Description
`url`	URL to get the patch.

Response format:

{
  "patch": {
    // data in patch format
  },
  "templates": {
    // templates that can be used in the patch section
  }
}

Note

To use patches on Android, pass a DivDownloader implementation to your DivConfiguration.

Switching elements

To navigate inside gallery, pager, and tabs, specify an action:

set_current_item: For the current element.
set_next_item: For the next element.
set_previous_item: For the previous element.

div-action://set_current_item?id=<div_id>&item=<item_index>
div-action://set_next_item?id=<div_id>&overflow=<clamp|ring>
div-action://set_previous_item?id=<div_id>&overflow=<clamp|ring>

Parameter	Description
`id`	ID of the element in which the current one must be switched.
`item`	Index of the element to scroll to.
`overflow`	Specifies how navigation will occur when the boundary elements are reached: `clamp`: Stop switching at the boundary element (default value). `ring`: Switch to the start or end depending on the current element.

Jump to the start or end of the gallery

To jump to the start or end of the gallery, specify the following action:

div-action://scroll_to_start?id=<div_id>
div-action://scroll_to_end?id=<div_id>

Parameter	Description
`id`	ID of the element in which the current one must be switched.

If the elements inside gallery are bigger than the gallery itself, the scroll_to_end action scrolls it to the end of the last element.

Scroll the gallery several dp forward or backward, or to a specific value

To scroll the gallery forward or backward, specify the following action:

div-action://scroll_forward?id=<div_id>&step=<dp_count>&overflow=<clamp|ring>
div-action://scroll_backward?id=<div_id>&step=<dp_count>&overflow=<clamp|ring>

To scroll the gallery to a specific value, specify the following action:

div-action://scroll_to_position?id=<div_id>&step=<dp_count>

Parameter	Description
`id`	ID of the element in which the current one must be switched.
`step`	Value in dp representing either the position to scroll the gallery to or the scroll step, depending on the action.
`overflow`	Specifies how navigation will occur when the boundary elements are reached: `clamp`: Stop switching at the boundary element (default value). `ring`: Switch to the start or end depending on the current element.

Managing tooltips

To show or hide tooltips, specify the show_tooltip or hide_tooltip action:

div-action://show_tooltip?id=<tooltip_id>
div-action://hide_tooltip?id=<tooltip_id>

Parameter	Description
`id`	Tooltip ID.

Video controls

To control a video, use the video action:

div-action://video?id=video_id&action=<start|pause>

Parameter

Description

id

ID of an element with a video.

action

Actions with videos:

start: Resume playback.
pause: Pause.

Timer controls

To control a timer, use the timer action:

div-action://timer?action=<action>&id=<id>

Parameter

Description

id

Timer ID.

action

Actions with timers:

start: Start the timer.
stop: Stop the timer.
pause: Pause the timer.
resume: Resume the timer.
cancel: Interrupt the timer.
reset: Reset the timer.

Changing the values of variables

To change the value of variables, specify the set_variable action:

div-action://set_variable?name=<variable_name>&value=<new_value>

Parameter	Description
`name`	Variable name.
`value`	New value.

Saving variables to temporary storage

To temporarily store variable values, specify the set_stored_value action:

div-action://set_stored_value?name=<variable_name>&value=<new_value>&type=<variable_type>&lifetime=<lifetime_in_sec>

Parameter	Description
`name`	Variable name.
`value`	Value to save.
`type`	Variable type. Must be `string`, `number`, `integer`, `url`, or `color`.
`lifetime`	Variable's storage lifetime in seconds. If you attempt to retrieve the variable after this time, it will be considered expired.

To get the value of a stored variable, use calculated expressions:

@{getStoredStringValue(name, default)}
@{getStoredNumberValue(name, default)}
@{getStoredIntegerValue(name, default)}
@{getStoredUrlValue(name, default)}
@{getStoredColorValue(name, default)}

The name parameter still represents the name of the stored variable, and default is the value to return if the variable can't be found or has expired.

Order of evaluation of expressions in actions

When multiple actions are specified in an array, there are two types of expressions with different evaluation timing:

is_enabled expressions - All is_enabled expressions for all actions in the array are evaluated at once before any actions are executed
Action parameter expressions - Each action's parameter expressions are evaluated just before that action is executed

This ensures that changes made by previous actions in the sequence are properly reflected in subsequent action parameters.

For example, in the following sequence of actions:

"actions": [
  {
    "log_id": "1",
    "is_enabled": "@{enable_actions}",
    "typed": {
      "type": "set_variable",
      "variable_name": "counter",
      "value": {
        "type": "integer",
        "value": 5
      }
    }
  },
  {
    "log_id": "2",
    "is_enabled": "@{counter > 0}",
    "typed": {
      "type": "set_variable",
      "variable_name": "message",
      "value": {
        "type": "string",
        "value": "Done"
      }
    }
  },
  {
    "log_id": "3",
    "is_enabled": "@{message != ''}",
    "typed": {
      "type": "set_variable",
      "variable_name": "result",
      "value": {
        "type": "string",
        "value": "@{message}"
      }
    }
  }
]

All is_enabled expressions (@{enable_actions}, @{counter > 0}, @{message != ''}) are evaluated simultaneously at the very beginning, before executing any actions
The expression @{message} in the third action is evaluated just before executing the third action and will reflect the changes made by the second action

This means that if the counter variable is initially 0, then the is_enabled expressions for the second and third actions will be evaluated as false even before the first action is executed, even though the first action should have set the counter value to 5.
